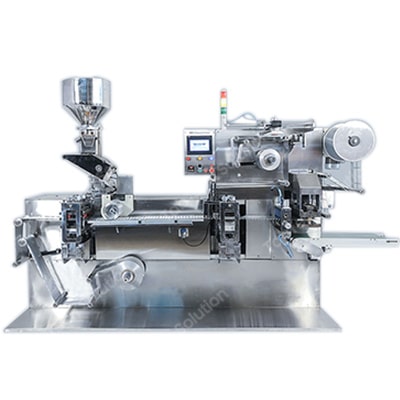

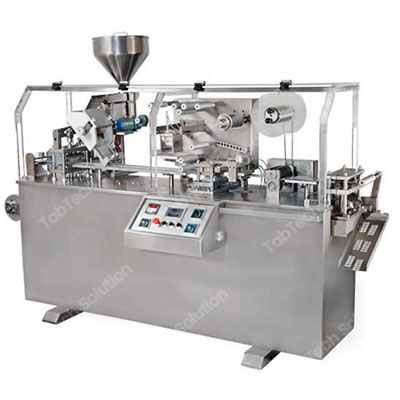

Tab Tech is a leading manufacturer, supplier and exporter of pharmaceutical packaging machines, including the Alu Alu Blister Pack Machine. This machine is designed to package pharmaceutical products in an efficient and effective manner, providing a high level of protection and ensuring the product remains intact during transportation and storage.
The Alu Alu Blister Pack Machine is used to package tablets, capsules, and other pharmaceutical products. The machine features a user-friendly interface and is easy to operate, making it an ideal choice for pharmaceutical companies of all sizes.
The Alu Alu Blister Pack Machine utilizes the latest technology to ensure the highest level of accuracy and efficiency in the packaging process. The machine is capable of producing blister packs at a rate of up to 100 packs per minute, making it a highly productive and efficient option for pharmaceutical manufacturers.
In addition to its speed and efficiency, the Alu Alu Blister Pack Machine is also highly customizable, allowing pharmaceutical companies to tailor the machine to their specific needs. This includes the ability to customize the size and shape of the blister packs, as well as the ability to add additional features such as perforations or embossing.
Overall, the Alu Alu Blister Pack Machine by Tab Tech is a reliable, efficient, and customizable solution for pharmaceutical companies looking to package their products in a safe and efficient manner. With its advanced technology and user-friendly design, it is a great investment for any pharmaceutical manufacturer looking to improve their packaging process.
| DESCRIPTION | (ALU ALU) COLD FORMING | (ALU ALU) COLD FORMING | |
| Model | TABPACK-30 (SINGLE STROKE) | TABPACK-40 (SINGLE STROKE) | |
| Base Foil Width | Width | Aluminum 150 mm | Aluminum 220 mm |
| Thickness | 0:13 mm | 0:13 mm | |
| Reel Dia. | 440 mm (Max.) | 450 mm (Max.) | |
| Sealing Foil Width | Width | Aluminum 146 mm | Aluminum 220 mm |
| Thickness | 0.025 mm | 0.025 mm | |
| Reel Dia. | 210 mm (Max.) | 210 mm (Max.) | |
| Max. Packet Forming Area | 140 x 85 mm | 140 x 130 mm | |
| Max. Forming Depth | 16 mm | 16 mm | |
| Output | 30 Strokes I Minute | 40 Strokes I Minute Approx. | |
| Round Tablet 6.5mm to 9.5mm | 3.0 Lakh/shift. Approx. | — | |
| Round Tablet 10mm to 12.5mm | 1.5 Lakh/shift. Approx. | 6 to 7 Lakh/shift. Approx. | |
| Small & Bid DS Tablet & size “2” & “0” Capsule | 1.5 Lakh/shift. Approx. | 3-4 Lakh/shift. Approx. | |
| Approximate Weight of Machine | 1055 kg. approx. | 1510 kg. approx. | |
| Machine Length x Width x Height | Approx. | 2910 x 900 x 1600 mm | 3310 x 1010 x 2010 mm |
| Connected Electric Power Load | 3.5 kw, Single Phase wire, 50 Hz | 15kW,3 Phase,4 Wire, 50Hz | |
| Average Electrical Power load | —— | 5kW, 3Phase, 4 Wire, 50Hz | |
| Utilities Requirements | —— | —— | |
| Air Consumption | 400 liters/minute @ 8kg pressure – 32 cfm | 200 liters/minute @ 6kg pressure – 200 – 18 cfm | |
| Cold Water | 80 liters / hours | 80 liters / hours | |
