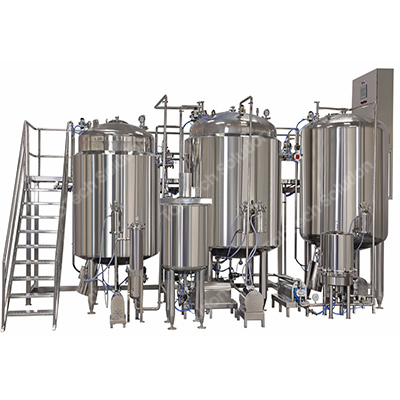

Syrup Manufacturing Plant

Automatic Ointment Manufacturing Plant in India

TABTECH Automatic Ointment Manufacturing Plant is made as per WHO, US FDA, MHRA & SCHEDULE “M” standards to manufacture Cream / Paste / Lotion / Gel for the Derma-logy, Pharma & Cosmetic.

TABTECH is manufacturing SS 316 Constructed Ointment Manufacturing Plant is designed to handle processes right from transferring of raw material to the delivery of finished products. Coming with digital metering pump fitted in hopper of filling machine, this plant is used for production of lotion and is so designed that it saves on valuable batch processing time. The plant offers efficient heating & cooling with support of accurate temperature control even in cases where processing is done for Small qualities.

Salient Features :
  • Available Models Capacity from 5 Ltrs. To 5000 Ltrs.
  • All Models are cGMP by construction from Stainless Steel 316.
  • Cream & Ointment mfg. Plants are making from SS 316 metal.
  • Provides functioning that is untouched by hand. Homogenizer functioning as transfer pump for efficient discharge of the Finishing product.
  • Provides for perfect particle as well as droplet size control Hygienic construction to ensure contamination free working environment.
  • Advanced PLC support that allows automated process control. Control panel provided for visual display of plant operations.
  • AC Variable Frequency Drive for the speed control of mixing arm.
  • Electronic Digital display meter for product temperature.
  • The vessels are Jacketed, Insulated, Cladded with suitable agitator assembly in each vessel.
  • Wax melting vessel and Water heating vessel, both wax and water transferred into the manufacturing vessel automatically through vacuum.
  • In manufacturing vessel both wax & water are homogenized to make a uniform emulsion and cooled by passing chilled water into the jacket of manufacturing vessel.
  • After the emulsion is formed active ingredients /colors are added and are thoroughly mixed & homogenized.
  • Later necessary perfume is added in case of cosmetics or wherever necessary.
  • The same is transferred by bump pump into the storage vessel & from the storage vessel it is automatically transferred into the filling machine by means of metering pump.
  • Flow rate of metering pump can beset as per tube filling machines speed and capacity.
  • In between interconnecting pipe line is connected with manual/ pneumatic valves for easy transfer of material.
Optional Features :
  • Advanced PLC support that allows automated process control. Control panel provided for visual display of plant operations.
  • AC Variable Frequency Drive for the speed control of mixing arm.
  • Magnetic Stirrer for Vessel.
  • Flameproof Motors Only
  • Complete Electrical & Flameproof Construction
  • Machines with 21 CFR Part 11 Compliance
  • Machines with Fully Automation with SCADA facility.
  • CIP / WIP System for Washing
  • Auto material Loading System (VTS & PTS)
