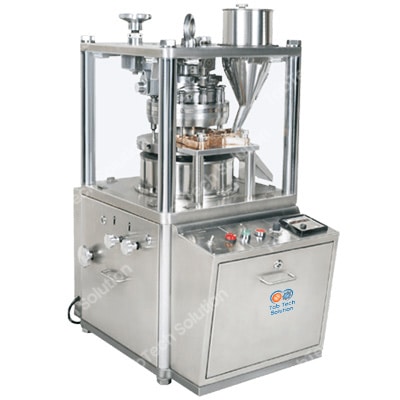

Lab Scale Pilot Tablet Press Manufacturer

TABTECH is manufacturing single sided & tabletop Lab Scale Pilot Tablet Press machine, square GMP modelis ideally suitable for F&D / R&D unit that require checking the tablet formation & rehabilitation of tablets. Built-in compliance with the cGMP standards it is optimally designed for all kinds of pharmaceutical companies. Lab Scale Pilot Tablet Press Machine comes with Max. 5-ton operating pressure, Safety / enhanced performance/cleavability and ease of operation are its most significant features. The suitable model can be selected based on the tooling and output requirement from the 8, 10&12 stations with “D”, “B”, MULTI TOOLING & COMBO TOOLING respectively.

All Machines are useful for the

Pharma & Non-Pharma Industry (Charcoal, Carbon, Iron, Ferrous & Non-Ferrous Tablet)
Ayurvedic & Pharmacy Colleges & Institutes
Ayurvedic Tablet, Pills Tablet, Nutraceutical Tablet, Food Tablet, Agro-Chemical Tablet, Cosmetics Tablet, Homeopathic Tablet, Confectionary Tablet, Animal Feed Tablet, Veterinary Medicine Tablet, Bolus Tablet, Slug Tablet, Ceramic Tablet, Naphthalene Ball Tablet, POLO Tablet, Calcium Tablet, Chlorine Tablets, Salt Tables, Sugar Tablets, Pesticides Tablets & Camphor Tablets.

Salient Features of Single Sided Rotary Tableting

Square GMP Table Top Model.
Contact Parts S.S.316 & Non-Contact Parts S.S.304.
Centre drive fitted with gear box.
Paint free tablet manufacturing zone.
Turret made by Special Graded SG IRON Casting.
Lower guard of polished stainless steel.
Upper guards of acrylic material.
Stainless Steel Turret Guards.
Grease nipples are provided for effective lubrication where required.
Upper punch penetration.
Electronic Digital tablet cum RPM counter.
Interlock switches to all guards with bypass selection.
Sturdy and easy fit Feed Frame (Gravity Feeder) of Gun Metal.
Anti-vibration mounts.
Reverse direction motion protection is provided to avoid accident.
Detachable electrical panel at front of the machine with all controls & tablet parameter settings from outside of the machine.

Technical Specifications

Type	TT-LAB-8	TT-LAB-10	TT-LAB-12 MT
No. of Station	8	10	12
Type of tooling	D	B	D,B & BB
Output tablets/hour*	2000 to 14400	2000 to 18000	2000 to 7200
Max. Operating Pressure	6 Tons	6 Tons	6 Tons
Max. Operating Pre-Pressure	1 Ton	1 Ton	1 Ton
Max. Tablet Diameter	19 mm(23 mm caplet)	16 mm	19 mm(23 mm caplet)
Max. Depth of fill	20.5 mm	17.5 mm	20.5 mm
Upper Punch Penetration	2 to 6 mm	2 to 6 mm	2 to 6 mm
Power	2 HP/1440 RPM	2 HP/1440 RPM	2 HP/1440 RPM
Gross weight(kg)	400	400	400
Overall dimensions(mm)	840 x 635 x 1200 H	840 x 635 x 1200 H	840 x 635 x 1200 H

Note : –

Also available Lab Scale Model / Production Scale Model.
Also available for Front Control Parameters.
Output depends upon the characteristic of material and shape, size, thickness & ambient condition.
All images are representation purpose only; actual product may vary.
Electric voltage and frequency can be provided as per customer requirement.
Due to continuous improvements in the machines, specification of the machines is subject to change without any prior notice.
These all machines should not be used to handle materials restricted under Narcotics Act. It should not be used to handle explosive & / or radioactive materials.

Optional Features

Dies & Punches (Tooling) (As per customer’s required tablet size)
Pre-Compression facility.
SS 304 / SS 316 / SS 316 L Die Middle Plate in Turret.
ELNP (Electro-less Nickel Plating) on Turret.
Main Motor with AC Variable Frequency Drive.
Force Feeder with AC Variable Frequency Drive.
Outside (Front) Controls (Can adjust tablet parameters i.e. Weight, Thickness & Pressure)
Auto Lubrication System.
Arrangement for the COMBO TOOLING & MULTI TOOLING (D+B & D+B+BB).
Flameproof Motor & Push Button Station.
PLC with MMI & Colour Touch Screen.
Machines with 21 CFR Part 11 Compliance.
Machines with Fully Automation with SCADA facility.

Also Available Machine

Formulation Powder / Processing Machinery for tablet.
Dust Extractor / Powder Collector Machine.
Vibro & Elevating Type De-Burring & De-Dusting Machine.
Tablet Metal Detector Machine.
Tablet Inspection Machine.
Tablet Coating Machine.
Tablet Dies & Punches (Round, DS/Capsule & Special Shape).
Tablet Blister Packing Machine (PVC & ALU ALU).
Tablet Strip Packing Machine.
