Manual Capsule Filling (100 Hole & 300 Holes)

TTMCF–Manually Operated Capsule Filling Machine is designed to serve the need of R & D purpose, small batches, trail run for large scale as well as regular production in small scale pharmaceutical companies. The machine is easy to operate, give production with minimum rejection and no weight variation. It is capable to fill powders, pellets in all sizes of hard gelatin capsules.

Two Models are available for the size of 00,0,1,2 & 3,4,5 size.

Model TTMCF-100 TTMCF-300
Output* Max. 600/minutes (without Loader) Max.1800/minutes (without Loader)
Output* —- Max.9000/minutes (without Loader)
Online Roll Compactor Machine
Quality Note
  • Also available Lab Scale Model / Production Scale Model.
  • Also available Complete Line Machines.
  • Output Depends upon the characteristic of material and shape, size, thickness & ambient condition.
  • All Images are representation purpose only actual product may vary.
  • Electric Voltage and frequency can be provided as per customer requirement.
  • Due to continuous improvements in the machines, specification of the machines is subject to change without any prior notice.
  • These all Machines should not be used to handle materials restricted under Narcotics Act. It should not be used to handle explosive & / or radioactive materials.

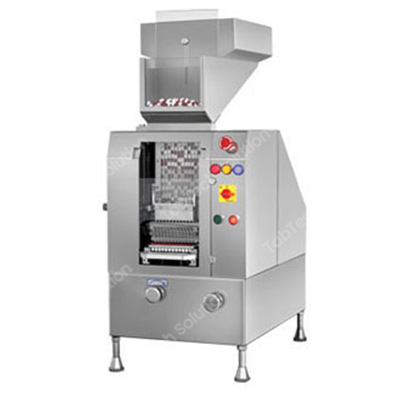

Capsule Loader Machine
Model – TTCLM-300
  • Considerably cost effective and highly efficient
  • Best for medium and large scale pharmaceutical companies.
  • Absolutely complex free
  • No wastage of time and labour
  • Occupies less space
Salient Features
  • Automised loading of empty capsule in the loading plate for
  • manually operated capsule filling machine, so it takes normally 5
  • minutes to load empty capsule in 300 holes loading plate
  • Drive 0.25 ¼ h.p, 3 phase, 440 volts, the machine gets stopped automatically after loading is complete
  • The machine cuts down the time in only 30 second. It supplied
  • filled loading plates for 2-3 capsule filling machine.
  • Increased production along with reduced number of operator.
  • Filling of 300- holes plate in 30 seconds which gives an output of 36,000 capsule per/hour.
  • Maximum output at minimum input
  • Highly significant in terms of production department
  • Very simple in operations even a semi skilled person can handle it
  • No setting system for any change part
Online Roll Compactor Machine

Interchangeability : The machine is manufactured to suit capsule size combination 00/0/1/2/3/4 or 5 Just plug and play type change parts any one can do changeover within 15-20minutes of time.

Capsule Polishing Machine

Model : TTCPM-Capsule Polishing Machine Consist with stainless steel chambers installed with Nylon net, a revolving variable speed spiral nylon brush, the capsules travel from one end to other end. During this travel they are subjected to roll in between the nylon bristles. In this course the powder on the capsules and at the edge are removed and sucked by the Dust extractor. The Capsules coming out of the chute are thoroughly polished, shiny & clean. All Contact Parts are S.S.316 & Non-Contact Parts S.S.304.

Model TTCPM
Electricals 0.5 HP / 1400 RPM
Bush RPM 280 to 980 RPM by ACVFD
Approx. Weight 75 Kgs.
Online Roll Compactor Machine
Note
  • Also available Lab Scale Model / Production Scale Model.
  • Also available Complete Line Machines.
  • Output Depends upon the characteristic of material and shape, size, thickness & ambient condition.
  • All Images are representation purpose only actual product may vary.
  • Electric Voltage and frequency can be provided as per customer requirement.
  • Due to continuous improvements in the machines, specification of the machines is subject to change without any prior notice.
  • These all Machines should not be used to handle materials restricted under Narcotics Act. It should not be used to handle explosive & / or radioactive materials.
Capsule Conveying System
Model : CCS

Freely convey filled capsule filling machine to capsule polishing machine

OUTPUT 47,000 capsules / hour
Electricals 2 HP, 380/440 Volts, 3 Ph, 50 Hz
Dimensions (L x W x H) 660mm x 550mm x 1700mm
Approx. Weight 150 Kgs.
Online Roll Compactor Machine
Note
  • Also available Lab Scale Model / Production Scale Model.
  • Also available Complete Line Machines.
  • Output Depends upon the characteristic of material and shape, size, thickness & ambient condition.
  • All Images are representation purpose only actual product may vary.
  • Electric Voltage and frequency can be provided as per customer requirement.
  • Due to continuous improvements in the machines, specification of the machines is subject to change without any prior notice.
  • These all Machines should not be used to handle materials restricted under Narcotics Act. It should not be used to handle explosive & / or radioactive materials.
Empty Capsule Sorter Empty Capsule Ejection
Model : CCS

Freely Machine sort out empty capsules from filled capsules

OUTPUT 90,000 capsules / hour
Electricals Blower
Dimensions (LxWxH) 250mm x 480mm x 600mm
Approx. Weight 35 Kgs.
Online Roll Compactor Machine
Online Roll Compactor Machine
Note
  • Also available Lab Scale Model / Production Scale Model.
  • Also available Complete Line Machines.
  • Output Depends upon the characteristic of material and shape, size, thickness & ambient condition.
  • All Images are representation purpose only actual product may vary.
  • Electric Voltage and frequency can be provided as per customer requirement.
  • Due to continuous improvements in the machines, specification of the machines is subject to change without any prior notice.
  • These all Machines should not be used to handle materials restricted under Narcotics Act. It should not be used to handle explosive & / or radioactive materials.
Dust Extractor – 70 CFM, 100 CFM & 200 CFM

Model : TTDEX Machine collect loose powder from capsule polishing chamber

Vaccum Flow 70 cfm 100 cfm 200 cfm
Electricals 1 HP, 380/440 Volts, 3 Ph, 50 Hz 2 HP, 380/440 Volts, 3 Ph, 50 Hz 2 HP, 380/440 Volts, 3 Ph, 50 Hz
Approx. Weight 100 Kgs. 110 Kgs. 180Kgs.
Note
  • Also available Lab Scale Model / Production Scale Model.
  • Also available Complete Line Machines.
  • Output Depends upon the characteristic of material and shape, size, thickness & ambient condition.
  • All Images are representation purpose only actual product may vary.
  • Electric Voltage and frequency can be provided as per customer requirement.
  • Due to continuous improvements in the machines, specification of the machines is subject to change without any prior notice.
  • These all Machines should not be used to handle materials restricted under Narcotics Act. It should not be used to handle explosive & / or radioactive materials.
