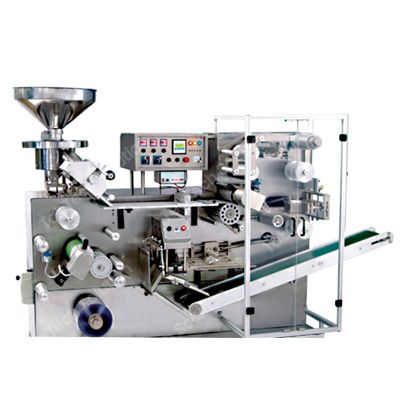

Tabpack – Blister Pack Machine

For Tablets, Dragees, Hard / Soft Gelatin Capsules Any Similar product of 12 mm (Cavity Depth), 110 mm (Length) and 25 mm (Width)

Note : –
  • Also available Lab Scale Model / Production Scale Model.
  • Output Depends upon the characteristic of material and shape, size, thickness & ambient condition.
  • All Images are representation purpose only actual product may vary.
  • Electric Voltage and frequency can be provided as per customer requirement.
  • Due to continuous improvements in the machines, specification of the machines is subject to change without any prior notice.
  • These all Machines should not be used to handle materials restricted under Narcotics Act. It should not be used to handle explosive & / or radioactive materials.
Technical Specifications
Model TABPACK-100 TABPACK-150 TABPACK-240 TABPACK-300
No. of Track LAB – SINGLE LAB – SINGLE DOUBLE DOUBLE
PVC Base Film Max. Width 128 mm 128 mm 206 mm 225 mm
Thickness 0.2 to 0.3 mm 0.2 to 0.3 mm 0.2 to 0.3 mm 0.2 to 0.3 mm
Max. Reel Dia. 440 mm 440 mm 440 mm 440 mm
Aluminum Foil Max. Width 124 mm 124 mm 200 mm 221 mm
Thickness 0.02 to 0.03 mm 0.02 to 0.03 mm 0.02 to 0.03 mm 0.02 to 0.03 mm
Max. Reel Dia. 210 mm 210 mm 210 mm 210 mm
Forming Area Min. 112 x 25 mm 112 x 25 mm 196 x 15 mm 210 x 25 mm
Max. 112 x 96 mm 112 x 96 mm 196 x 132 mm 210 x 132 mm
Maximum Pack Length 120mm 120mm 196mm 217mm
Maximum Pack Width 104 mm 104mm 106mm 140mm
Forming Depth(On Demand 19mm) 12 mm 12mm 12mm 12mm
Maximum Out Put* 150 Stroke/min. 150 Stroke/min. 150 Stroke/min. 150 Stroke/min.
Electric Power 4 kw. (415V, 3 Ph., A.C.) 8 kw. (415V, 3 Ph., A.C.)
Note : –
  • Fully automatic, high-speed system with continuous operation cycle mechanism for efficient packing.
  • Fully automatic tablet feeding unit with photo level control and controlled vibrator.
  • Crease proof sealing pattern to eliminate capillary formation of foil on sealing and knurling efficiency saves products from hygroscopic effects and ensures convenient passage through leak tests.
  • Infrared Photo Controller for Feeder Unit.
  • Universal Type Batch – Code Printing Unit.
  • A comparatively lengthy “Guide Track” for rigid inspection for missing fillings, if any.
  • Contact heating system with pneumatic actuation allows blister forming with even heating and save wastage of PVC after every stoppage.
  • Fully Automatic integrated system will high precision mechanism for efficient blister packing, Versatility of this equipment suits your total packaging needs.
  • Specially designed ergonomic and aesthetic partially electronic control panel board protects electrical operational components.
  • Suitable designed framework and usage of high bought out components from trusted names make the operational system easy, clean & perfect
  • Adaptable to change parts of other machines of similar design.
1) Base Film
  • Opaque, Transparent or colored thermo formable and non-toxic
  • PVC, PVC with PVDC coating, PVC with PE/PVDC, ACLAR.
2) Lidding Material
  • Aluminum (Hard) with Heat-Sealed lacquer or PVDC Coating & Child Resistance Type (Al-Al OR Al-Paper)
3) Optional Facilities (Available On Prior Intimation)
  • In-Line Scoring Unit For Dispersing of Blister into Twos
  • Thermoforming of Manufacturer’s / Product’s Name
  • Printing Registration Control System (PR C)
  • Multi Product Packing Facility
  • Injectable Packing Facility
  • PLC based Operational system
4) Utility Requirements
  • 5 Hp Air Compressor of 200 Liters Air Tank with a minimum Pressure of 120 Lbs/8 Kg (at par with Ingersoll – Rand IR –242 Air Compressor).
  • Water Chiller of 180 Liters Per Hour Capacity with a Temperature drop of 17. C.
  • Suitable Equipment to maintain the Ambient Temperature of Working Environment Between 18.C to 22.C.
