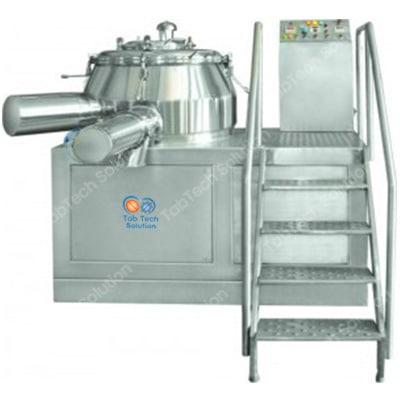

Rapid Mixer Granulator

Rapid Mixer Granulator

Tab Tech is a leading manufacturer of Rapid Mixer Granulators (RMGs) in the pharmaceutical industry and has a proven track record of providing high-quality RMGs that cater to the specific requirements of pharmaceutical manufacturers.

Our Rapid Mixer Granulator are designed to mix and granulate dry powders and wet granules. We have a high-speed mixer and chopper that ensure fast and uniform mixing of the ingredients. The granulator’s unique design ensures efficient granulation and reduces the chances of product wastage. The RMGs are also equipped with advanced features such as programmable logic controllers (PLCs) and touch screen interfaces, which make them user-friendly and easy to operate.

Rapid Mixer Granulator Manufacturer

RMGs are made from high-grade stainless steel, which is corrosion-resistant and ensures hygienic production. They also comply with international quality standards and regulations such as cGMP, USFDA, and WHO. We offer a wide range of Rapid Mixer Granulators with varying capacities to meet the diverse needs of the pharmaceutical industry.

Our commitment to customer satisfaction is reflected in after-sales service and have a team of experienced technicians who provide prompt and efficient support to customers whenever required. Our Rapid Mixer Granulator have gained a reputation for reliability, durability, and high performance.

Technical Specifications
Model TT-RMG-IO TT-RMG-25 TT-RMG-50 TT-RMG-1OO TT-RMG-150 TT-RMG-250 TT-RMG-400 TT-RMG-600
Gross Volume Itr. 10 25 50 100 150 250 400 600
Working Volume Itr. 8 20 40 80 120 200 320 480
Mixer Motor (HP) 1.5 3/5 4/7.5 7.5/10 10/15 20/30 30/40 40/50
Chopper Motor(HP) 1 1.5/2 2/3 2/3 3/5 3/5 5/7.5 7.5/10
Compressed Air pressure(bar) 6 6 6 6 6 6 6 6
Power Supply 220 V(+/- 10 %), 1 Ф,AC 415 V(+/- 10 %), 3 Phase, AC 415 V(+/- 10 %), 3 Phase, AC 415 V(+/- 10 %), 3 Phase, AC 415 V(+/- 10 %), 3 Phase, AC 415 V(+/- 10 %), 3 Phase, AC 415 V(+/- 10 %), 3 Phase, AC 415 V(+/- 10 %), 3 Phase, AC
Note : –
  • Also available Lab Scale Model / Production Scale Model.
  • Output Depends upon the characteristic of material.
  • All Images are representation purpose only actual product may vary.
  • Electric Voltage and frequency can be provided as per customer requirement.
  • Due to continuous improvements in the machines, specification of the machines is subject to change without any prior notice
  • These all Machines should not be used to handle materials restricted under Narcotics Act. It should not be used to handle explosive & / or radioactive materials.
Rapid Mixer Granulator Salient Features
  • RMG is available from 3 liter to 600 liter working capacity.
  • All Machines are cGMP with Contact Parts SS 316.
  • Mixing time is very less hence resulting to have Optimum Productivity.
  • Good quality and Uniform Mixing of Granulation.
  • More Hygienic Granulation as it’s having Minimum Handling.
  • Manual Push Button Type (RYB) Control Panel on Machine.
  • Pneumatically Discharge Valve.
  • Manual Lid lifting with counter weight
  • Unique design incorporating Impeller.
  • Ensures the round and even granules of high density.
  • Machine is suitable for Dry and wet granulation in one step.
  • Detachable impeller & chopper ensure 100% cleaning.
  • The minimum possible gap between the bottom surface and impeller ensures no deposition at the bottom surface.
  • Top Lid withProvision of Manual Charging with Safety Grill to prevent accident, Filter bag of PC Satin&one Port for WIP / Binder addition / Vacuum powder charging system
  • Dual Speed Motor for the Mixing Bowl & Chopper
  • Heavy M.S. Structure with SS cladding and covered with SS doors
  • Anti-Vibration Mounting Pad
Rapid Mixer Granulator Optional Features
  • Pneumatic Lid Lifting – Vertical Tilting
  • ACVFD for Impeller motor and chopper motor (Single Motor)
  • Flame Proof Motors (Impeller Motor / Chopper Motor)
  • Flame Proof Construction with Push Button Station / Starter.
  • CIP / WIP for Washing System
  • Attached Co-Mill
  • Binder Addition – Solution Tank with Peristaltic Pump
  • PLC with HMI Color Touch Screen
  • Machines with 21 CFR Part 11 Compliance
  • Machines with Fully Automation with SCADA facility.
  • Auto Powder Loading System (VTS & PTS)
Also Available Machine
  • Also Available Pilot Scale Labmodel.
  • Also Available above machine with attached Co_Mill (Super Mill)
