Strip Packing

Strip Packing
Application of Strip Packing

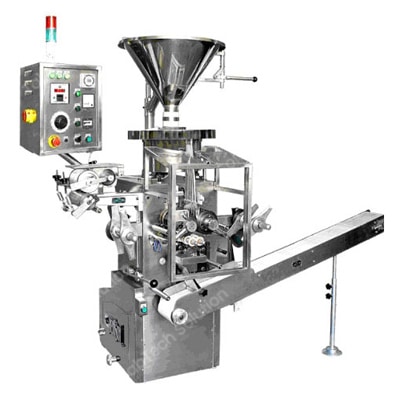

TABPACK Strip Packing Machine is extensively used to pack Tablets, Capsules, Caplets, Coated Tablets, Soft Tobacco, Refills, Battery Cells, Mats, Bearings, Oil Seals, Steel Balls, Chewing Gum, Coffee etc.

Features of Strip Packing

Suitable for most heat sealable foils like Aluminum Poly, Glassine Poly, Paper Poly etc. all parts are standardized which ensures quick inter changeable. There are different models, capacity ranging from 400 to 3600 tables/min.

Trouble free smooth operation.

Technical Specifications for Semi Automatic Augar Type Powder Filling Machine
MODEL TABPACK-2 TABPACK-4 TABPACK-6 TABPACK-8
Max. Foil Width 100mm 150mm 210mm 245mm
Output Per Minute 600 to 800 1200 to 1600 2000 to 2600 3000 to 3600
Overall Dimension convey 1630mm 1630mm 1630mm 1630mm
Wight Of Machine 480 kg 480 kg 480 kg 600 kg
Height With Hopper 1710mm 1710mm 1710mm 1710mm
Motar Drive 0.5 HP 415 V 0.5 HP 3 PHASE 0.5 HP 3 PHASE 0.5 HP 3 PHASE
Note : –
  • Also available Lab Scale Model / Production Scale Model.
  • Output Depends upon the characteristic of material and shape, size, thickness & ambient condition.
  • All Images are representation purpose only actual product may vary.
  • Electric Voltage and frequency can be provided as per customer requirement.
  • Due to continuous improvements in the machines, specification of the machines is subject to change without any prior notice.
  • These all Machines should not be used to handle materials restricted under Narcotics Act. It should not be used to handle explosive & / or radioactive materials.
