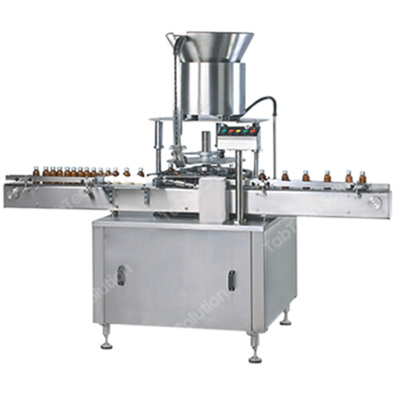

Automatic Measuring Dosing Cup Placement & Pressing Machine

“TabTech” Automatic Measuring Dosing Cup Placement & Pressing Machine is highly efficient machine with elegant look, consists of conveyor, vibrator, holding & pressing rollers. All the exposed parts of the unit are in S.S., chrome platted or cladded with S.S. The machine is precision built on sturdy welded steel frame completely enclose in stainless steel sheet and doors are providing to facilitate the servicing of machine.

The feed container moving on conveyor belt are fed into star wheel, bringing the container below the Pneumatic Cylinder (Pressing Device) in the subsequent indexing part, meanwhile the bottle pickup a cap from the delivery chute of cap feeding bowl, where the body and the neck of the container are positioned below the pressing roller. Where the pressing roller is performing perfect operation of pressing.

Technical Specifications – Automatic Measuring Dosing Cup Placement

Model		TT-MCPP-150	TT-MCPP-200
Output/Hour*		3600 to 9000 Bottles	6600 to 12000 Bottles
Direction of Movement		Left to Right	Left to Right
Elec. Spec.	Main Motor	0.75 HP / 220 Volts / 50 Hz.	1.5 HP / 220 Volts / 50 Hz.
Cup Feeding Bowl		300 Watt
Height of Conveyor**		860mm to 910mmAdjustable

Note : –

Also available Complete Line Machines / Separate MonoBlock Machines.
Output Depends on Container size, fill size, Neck diameter of container, and nature of liquid etc.
Special Product can run With help of change parts.
All Images are representation purpose only actual product may vary.
Electric Voltage and frequency can be provided as per customer requirement.
Due to continuous improvements in the machines, specification of the machines is subject to change without any prior notice.
These all Machines should not be used to handle materials restricted under Narcotics Act. It should not be used to handle explosive & / or radioactive materials.

Salient Features

No container no cup arrangement.
Single motor synchronizes conveyor, star wheel & platform turret
Adjustable height of conveyor belt, to align with other machines of the line.
Low noise level, low power consumption.
Self lubricating UHMW-PE guide profile for low friction wear surface, smooth and noiseless conveying.
SS cladding or hard chrome platting of all exposed parts to ensure long life and resistance against corrosion.
Universal coupling for quick and easy setting of In-feed worm.

Optional Features

No Cap No Container Arrangement.
Cap Lifting Elevator facility
Adjustable Height by Motor.
Acrylic Cabinet for the working area
Machine Stop arrangement during bottle jamming problem.
Higher Capacity Hopper
Change Parts
PLC HMI with Color Touch Screen
21 CFR with Part 11 Compliance Facility
Fully Computerized with SCADA Facility

Also Available Machines

Linear Type Measuring Dosing Machine available (not required Change Parts)
