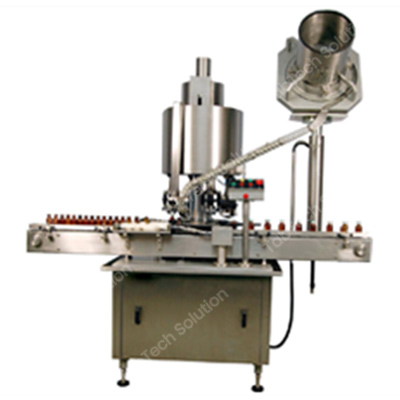

Automatic Multi Head ROPP Cap Sealing Machine

Automatic Multi Head ROPP Cap Sealing Machine

“TabTech” Automatic Multi Head ROPP Cap Sealing Machine is versatile, self-supported on stainless steel leg with height adjustable adjustment system. The machine is precision built on sturdy welded steel frame completely enclose in stainless steel sheet and doors are providing to facilitate the servicing of machine.

The feed container moving on conveyor belt are fed into star wheel, bringing the container below the sealing head in the subsequent indexing part, meanwhile the bottle pick up a cap from the delivery chute of cap feeding bowl, where the body and the neck of the container are positioned below the rotating head. Where the sealing head is performing perfect operation of threading & sealing.

Technical Specification -Automatic Multi Head ROPP Cap Sealing Machine
Model TT-ARC-100 TT-ARC-150 TT-ARC-200 TT-ARC-250
No.of Sealing Head 4 Head 6 Head 8 Head 10 Head
Output/Hour* 3600 to 6000 bottles 3600 to 9000 bottles 4000 to 12000 bottles 7000 to 15000 bottles
Direction Left to Right
Elec. Spec. Motor 1.5 HP / 415 Volts / 50 Hz 2 HP / 415 Volts / 50 Hz 5 HP / 415 Volts / 50 Hz
Cap Feeling Bowl 0.25 HP / 415 Volts / 50 Hz.
Height of Conveyor 860 mm to 910 mm Adjustable
Required Change Parts Container: Star Wheel,  Back Guide, Feed Worm Cap: Die, Delivery chute, Bowl & S.S. Star wheel.
Note : –
  • Also available Complete Line Machines / Separate MonoBlock Machines.
  • Output Depends on Container size, fill size, Neck diameter of container, and nature of liquid etc.
  • Special Product can run With help of change parts.
  • All Images are representation purpose only actual product may vary.
  • Electric Voltage and frequency can be provided as per customer requirement.
  • Due to continuous improvements in the machines, specification of the machines is subject to change without any prior notice.
  • These all Machines should not be used to handle materials restricted under Narcotics Act. It should not be used to handle explosive & / or radioactive materials.
Salient Features
  • No container no cap arrangement.
  • Single motor synchronizes Conveyor, star wheel & platform turret.
  • Adjustable height of conveyor belt, to align with other machines of the line.
  • All contact parts are made out of stainless steel.
  • Low noise level, low power consumption.
  • S. cladding or hard chrome platting of all exposed parts to ensure long life and resistance against corrosion.
  • Universal coupling for quick and easy setting of In-feed worm.
  • Sealing pressure can be varied to suit different gauges and size of caps.
  • Self-lubricating UHMW- PE guide profile for low friction wears surface, smooth and noiseless conveying.
  • Adjustable bottle height gauge for easy and quick setting.
Optional Features
  • No Cap No Container Arrangement.
  • Adjustable Height by Motor.
  • Acrylic Cabinet for the working area
  • Higher Capacity Hopper
  • Change Parts
  • PLC HMI with Color Touch Screen
  • 21 CFR with Part 11 Compliance Facility
  • Fully Computerized with SCADA Facility
