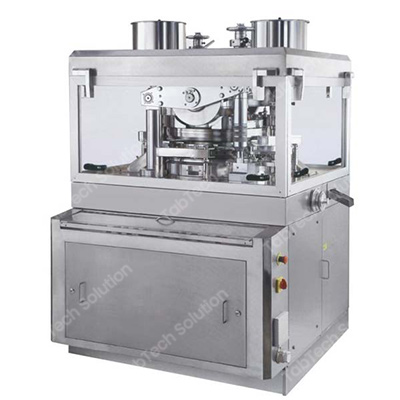

High Speed Tablet Press II

High Speed Tablet Press II

TAB II is the High Speed Double Sided Rotary Tablet Press Machine (TABPRESS II, GMP model – 37 Stn. “D”, 45 Stn. “B”, 55 Stn. “BB” & 61 Stn. “BB”) is ideally suited for projects that require the higher output to cater to large scale batch production needs. Built-in compliance with the cGMP standards, it is optimally designed for all kinds of pharmaceutical companies. Also optionally it comes with a force feeder attachment which helps to ensure higher weight consistency for the tablets&The Rotary Force Feeders are bottom driven and can be easily removed & clean is very fast & easier. Machines with an electromagnetic clutch that makes it easier to carry out the operations.

TAB II is the High Speed Double Sided Rotary Tablet Press Machine has got an internal helical gear ring as well as a pinion drive which can facilitate the smooth and efficient running of the machine. Additionally, the main motor is supported by an ACVF Drive and the feeder motors are backed by an ACVF Drive. The operational team can set all the tablet parameters i.e. weight, thickness & pressure from outside the tableting zone.

All Machine are useful for the……….
  • Pharma & Non-Pharma Industry (Charcoal, Carbon, Iron, Ferrous & Non-Ferrous Tablet)
  • Ayurvedic Tablet, Pills Tablet, Nutraceutical Tablet, Food Tablet, Agro-Chemical Tablet, Cosmetics Tablet, Homeopathic Tablet, Confectionary Tablet, Animal Feed Tablet, Veterinary Medicine Tablet, Bolus Tablet, Slug Tablet, Ceramic Tablet, Naphthalene Ball Tablet, POLO Tablet, Calcium Tablet, Chlorine Tablets, Salt Tables, Sugar Tablets, Pesticides Tablets & Camphor Tablets.
Salient Features for High Speed Tablet Press II
  • In compliance with cGMP with paint-free tablet manufacturing zone.
  • Contact parts S.S.316 & non-contact parts S.S.304.
  • Double sided (double hopper) machine with double side tablet output.
  • Possible to make tablet up to Dia. 23.5 mm in “D” Tooling Machine (25 mm Dia. on demand), 16 mm in “B” Tooling & 11 mm in “BB” Tooling Machine.
  • Excellent and operator-friendly material feeding system.
  • Powder feeding hopper with butterfly valve.
  • Higher turret speed max. up to 50 RPM.
  • Maximum operating pressure 10 Ton.
  • Maximum output up to 366,000 tablets per hour.
  • Turret made by special graded SG IRON casting with lower punch seals.
  • Phosphorous bronze bush provided inside the turret hole.
  • Upper punch penetration.
  • Electromagnetic clutch with ACVFD system to protect rotating parts from the starting torque, resulting in less wear & tear.
  • Upper & lower pressure rolls fitted with ball bearings.
  • Electronic digital tablet cum RPM counter.
  • Interlock switches to all guards with bypass selection.
  • Sturdy and easy-fit feed frame (gravity feeder) of gun metal.
  • Double sided tunnel type lifting cams.
  • Upper guards of transparent acrylic material & lower guard of polished stainless steel.
  • Cam tracks & pressure rolls made out of alloy steel.
  • Continuous lubrication pump for turret helical gear & pinion.
  • Lower punch seals in turret.
  • Three types of filling cams.
  • Aluminum turret guards to cover teeth ring of turret.
  • Imported needle roller bearing provided at the bottom of turret.
  • Advanced compression mechanism, maintenance-free system, eliminating hydraulic cylinder and hydraulic accumulator assembly.
  • No breakdown due to hydraulic leakage.
  • One-shot lubrication pump is provided for lower roll pins.
  • Anti-vibration mounts.
  • Effective dust extraction nozzle.
  • Reverse direction motion protection is provided to avoid accidents.
  • Detachable electrical panel at the front of the machine with all controls & tablet parameter settings accessible from outside the machine.
Optional Features
  • Dies & Punches (Tooling) (As per customer’s required tablet size).
  • Three-piece turret with stainless steel 304 / 316 / 316L die plate.
  • Bi-layer (two layer) facility.
  • ELNP (Electro-less Nickel Plating) on turret.
  • Hydraulic power pack system for pressure loading and overload release.
  • Separate electric control panel.
  • Force feeding attachment with AC drive.
  • Flameproof motors only.
  • Flameproof complete separate panel.
  • Core rod provision in turret for POLO tablet (in “D” Tooling machine only).
  • Lower punch lubrication spray system for sticky, effervescent & hygroscopic powder.
  • Auto rejection and random sampling device (during start and stop of the machine).
  • PLC with HMI & colour touch screen.
  • Machines with 21 CFR Part 11 compliance.
  • Machines with full automation and SCADA facility.
  • Powder level sensor.
  • “Y” connection chute with auto powder loading system (VTS & PTS).
Technical Specifications
Model TT-II-D-37 TT-II-B-45 TT-II-BB-55 TT-II-BB-61
No. of Station 37 45 55 61
Type of tooling D B BB BB
Output tablets/hour 53280 to 266400 64800 to 324000 79200 to 396000 87840 to 439200
Max. Operating Pressure(main) 10 Tons 6.5 Tons 6.5 Tons 6.5 Tons
Max. Tablet Diameter 23 mm(25 mm on Demand) 16 mm 11.1 mm 11.1 mm
Max. Depth of fill 20 mm 17 mm 17 mm 17 mm
Upper Punch Penetration 3.2 to 6 mm 3.2 to 6 mm 3.2 to 6 mm 3.2 to 6 mm
Main electric motor 5.5 kW/7.5 hp, 1440 RPM 415 V, 50 Hz, 3 Ph. 5.5 kW/7.5 hp, 1440 RPM 415 V, 50 Hz, 3 Ph. 5.5 kW/7.5 hp, 1440 RPM 415 V, 50 Hz, 3 Ph. 5.5 kW/7.5 hp, 1440 RPM 415 V, 50 Hz, 3 Ph.
Force feeder motor(2 Nos.) 0.19 kW/0.25 HP 0.19 kW/0.25 HP 0.19 kW/0.25 HP 0.19 kW/0.25 HP
Power(Total) 7 kW/9.5 HP 7 kW/9.5 HP 7 kW/9.5 HP 7 kW/9.5 HP
Overall dimensions(cm) 147 X 140 X 187 H (Approx.) 147 X 140 X 187 H (Approx.) 147 X 140 X 187 H (Approx.) 147 X 140 X 187 H (Approx.)
Net Weight 2500 kg(Approx.) 2500 kg(Approx.) 2500 kg(Approx.) 2500 kg(Approx.)
Case Dimension(cm) 168 X 183 X 224 H (Approx.) 168 X 183 X 224 H (Approx.) 168 X 183 X 224 H (Approx.) 168 X 183 X 224 H (Approx.)
Grass Weight 2835 kg (Approx.) 2835 kg (Approx.) 2835 kg (Approx.) 2835 kg (Approx.)
Note : –
  • Also available Lab Scale Model / Production Scale Model.
  • Also available for Front Control Parameters.
  • Output depends upon the characteristic of material and shape, size, thickness & ambient condition.
  • All images are for representation purpose only; actual product may vary.
  • Electric voltage and frequency can be provided as per customer requirement.
  • Due to continuous improvements in the machines, specification of the machines is subject to change without any prior notice.
  • These machines should not be used to handle materials restricted under the Narcotics Act. They should not be used to handle explosive and/or radioactive materials.
